Winder Stairs- Finish With a Handrail

When you're framing the stairs, it's worth giving some thought to the handrail.

Often, the handrail can be attached to a wall, so this is the time to add some blocking so you have something solid to attach it to- in the right place.

In my case, I've got a wall, but this is a winding stair, which complicates things.

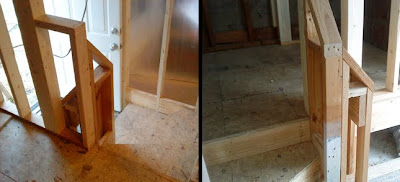

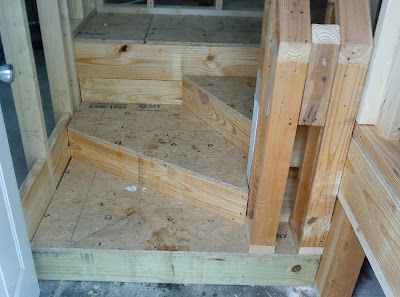

For this particular project. I decided to frame in a short wall which rises around 30" above the front edge of the treads which will be covered in drywall with a handrail attached on top.

The difficult part to this is getting the angles right. As I mentioned in my post about the layout (here), the narrow end of each tread is 6" across. With a 6 1/2" riser, we know that the angle will be close to 45 degrees. I found that a 48" miter worked for me.

My idea was to treat this similarly to a newel post that might have a handrail coming into it from one direction and then continuing on from another side in the new direction.

-Peter

www.CarpentryGuy.com
