Adapting and Trimming the Windows

One huge difference between an old garage and a living space is windows. It was time to install the windows, but making salvaged windows fit the style of a house can be tricky. For this project, we were flexible on size because I gutted the inside and could frame the opening to any size necessary. The bigger task was to make these windows look like the belonged to this house.

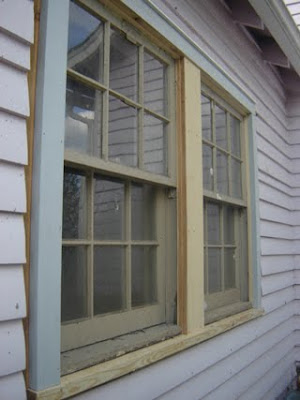

The double window I found for the front was in decent shape, but still required some repairs. First, I had to build a new window sill to go across the bottom. The window unit will actually sit on this. The sill piece is notched at an angle so that it tilts a little downward to help water run off. It's not glamorous, but I made the sill out of a spare 2x4. The thickness is the perfect size to match our other windows.

With the sill in place, I then nailed a safety board across the window hole so the window would not fall out the other side when I set it up there. No, it's never happened to me. I just try to work slow enough that I think about these things... :)

I had to remake the trim that goes around the perimeter of the window and holds the top sash in place. I used some 3/4" stock that I ripped to 1 3/8" wide. The window unit had notches where this trim had once been so I knew exactly where to put it and what size it needed to be.

Next, I made the trim for the top with the drip cap just like the back door (yesterday's post) and then installed the side casing. The center opening needed another 3/4" board ripped to the right width to cover the cavity that conceals the window's counter weights. Each window has 1 working counter weight. They should have 2, but I suppose it amazing they still have half of them intact.

On the side of the old garage was an old window that was rotted and in bad shape. I found this Jeld-wen unit at Hailey's. It cranks out and fit the rough opening without me having to make many adjustments. It's the most modern and energy efficient window in the house!

I still need to replace some siding and caulk everything, but I'm anxious to start framing. Let's build a wall next...

-Peter
